Multi gas detector - GX-6000(RIKEN KEIKI Co., Ltd.)
- Multi gas detection(CH4 / O2 / H2S / CO / VOC / HC)
- PID, Electro Chemical, IR, Galvanic Cell for smart sensor
- Multi language (English/Japanese/Korean/French/Spanish/Italy/German/Russian/Portuguese）

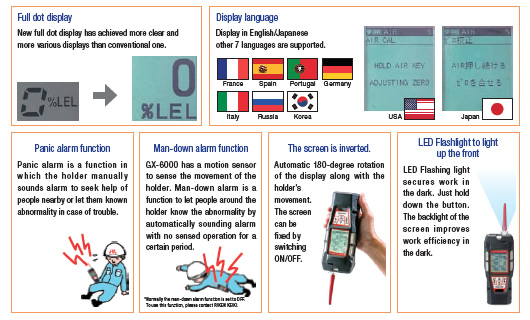

- Man down alarm (When no movement of the holder)
- Panic alarm
- LED flashlight

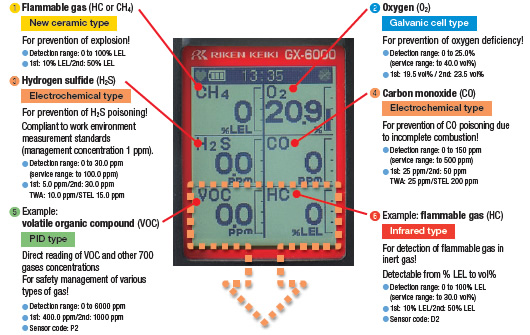

Diverse target gases!
Measurement of up to six gases with one device!!
Select from 11 types of gas line up!*1 (up to two types)
| Gas to be detected | Detection range (service range) |
1dlglt | Alarm setpoint value | Sensor code ⑤~⑥ |
|||
|---|---|---|---|---|---|---|---|
| 1st | 2nd | TWA | STEL | ||||
| Volatile organic compound (VOC) | 0~5000:1ppb | ~5000:1ppb 5000~:10ppb |
5000ppb | 10000ppb | - | - | P1 |
| 0~6000ppm | ~600.0 : 0.1ppm 600~:1ppm |
400.0ppm | 1000ppm | - | - | P2 | |
| VOC: 0~100ppm | ~10ppm:0.01ppm 10ppm~:0.1ppm |
5ppm | 10ppm | - | - | P3 | |
| Benzene:0~50ppm | - | - | - | - | |||
| Sulfur dioxide (SO2) | 0~99.90ppm | 0.05ppm | 2.00ppm | 5.00ppm | 2.00ppm | 5.00ppm | E1 |
| Nitrogen dioxide (NO2) | 0~20.00ppm | 0.05ppm | 3.00ppm | 6.00ppm | 3.00ppm | - | E2 |
| Hydrogen cyanide (HCN) | 0~15.0ppm | 0.1ppm | 5.0ppm | 10.0ppm | - | 4.7ppm | E3 |
| Ammonia (NH3) | 0~400.0ppm | 0.5ppm | 25.0ppm | 50.0ppm | 25.0ppm | 35.0ppm | E4 |
| Chlorine (Cl2) | 0~10.00ppm | 0.05ppm | 0.50ppm | 1.00ppm | 0.50ppm | 1.00ppm | E5 |
| Flammable gas (HC) | 0~100%LEL(~30.0vol%)*2 | 1%LEL (0.5vol%) | 10%LEL | 50%LEL | - | - | D2 |
| Flammable gas (CH4) | 0~100%LEL/~100.0vol%*3 | 1%LEL / 0.5vol% | 10%LEL | 50%LEL | - | - | D3 |
| Carbon dioxide (CO2) | 0~10.00vol% | 0.02vol% | 0.50vol% | 3.00vol% | 0.50vol% | 3.00vol% | D1 |
| Carbon dioxide (CO2) | 0~10000ppm | 20ppm | 5000ppm | - | 5000ppm | - | D4 |
*1 Caution in use might be necessary in the case of specific combination. Please contact RIKEN KEIKI.
*2 The display automatically changes into vol% when gas of 100% LEL or more is detected.
Product code・・・・・・・・・・・・・・・・・・・・・・Selected gas types are included in product codes as shown below.
Easier to use, more sophisticated

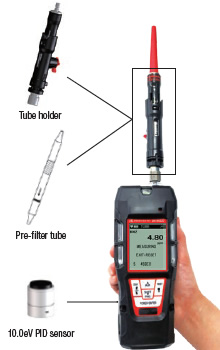

Detect Benzene selectively in low concentration
New 10.0eV PID sensor & Pre-filter tube make it possible to detect benzene selectively!
Benzene increases the risk of cancer and other illnesses.
The average allowable amount in workroom air during an 8-hour workday, 40-hour workweek (TLV-TWA) is 0.5ppm.
GX-6000 Benzene Select Mode can measure benzene from 0.01ppm.
Pre-filter tube
*does not include RoHS directive chemical substance.
*removes most interference gases longer time.
Measurement time : 45 seconds (at 20℃~29.9℃)
*Measurement time is determined automatically by temperature.
Product Specification
| Model | GX-6000 |
|---|---|
| Alarm type | Gas alarm : 2-step alarm, TWA, STEL, OVER alarm Fault alarm : system error, sensor error, battery voltage drop, calibration defeat, decreased flow Other : Panic alarm, Man-down alarm*1 |
| Alarm display | Gas alarming : blinking lamp, buzzer continuous modulated sound, gas concentration display and blinking alarm details, vibration Fault alarming : blinking lamp, buzzer on and off, displayed fault details. Other : blinking lamp, buzzer continuous modulated sound |
| Warning buzzer sound pressure | 95 dB (A) or higher (30cm) (with the protection cover) |
| Detection method | Pump drawing type |
| Drawing flow rate | 0.45 L / min or more (open flow rate) |
| Display | LCD digital (full dot display) |
| Display language | English / Japanese / French / Spanish / Portuguese / German / Italian / Russian / Korean |
| Power supply | Lithium-ion battery unit or battery unit <Three size AA alkaline batteries*2> |
| Continuous operating time | Lithium-ion battery unit : approx. 14 hours (25℃, fully charged, without alarm nor illumination) Dry battery unit : approx. 8 hours (25℃, new dry battery, without alarm nor illumination) |
| Range of operating temperature | -20~+50℃ |
| Range of operating relative humidity | Below 95% RH (non-condensing) |
| External dimension | Approx. 70(W)×201(H)×54(D)mm (projection portions excluded) |
| Weight | Approx. 500g (lithium-ion battery unit is used) / Approx. 450g (dry battery unit is used). |
| Protection level | IP67 equivalent |
| Explosion proof class | Ⅱ 1G Ex ia ⅡC T4 Ga |
| Certifications and Approvals | ATEX Explosion-proof authorized, IECEx authorized, CE Marking approved, THIS Explosion-proof authorized |
| Function | LCD backlight, data logger, peak value display, log date display, several languages displayed, screen inversion, LED light |
*1 Normally the man-down alarm function is set to OFF. To use this function, please contact RIKEN KEIKI.
*2 To meet requirements of explosion-proof capabilities, use dry batteries described in Certificate of Conformity of the Explosion-proof Construction of Electric Equipment and Devices.
